Gearless Direct Drive PMSSM HVLS Ceiling Fan

Always Leading the Technology Innovation of the HVLS Fan Industry

Gearless Direct Drive PMSSM HVLS Ceiling Fan

    • High Volume, Low Speed
    • Innovative Servo Motor Direct Drive design with inner rotor magnetic, body inside and wiring coil outside
    • Energy-saving for large scale premises

Components & Materials

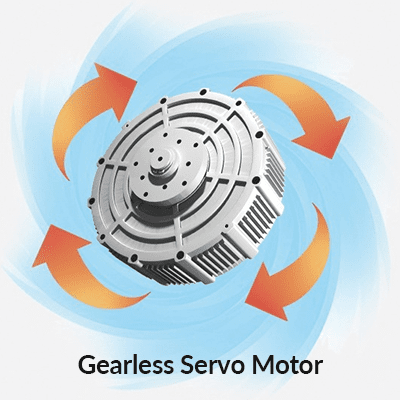

    • Gearless Permanent Magnet: Servo motor direct-drive
    • Inverter Control: Intelligent Servo Controller

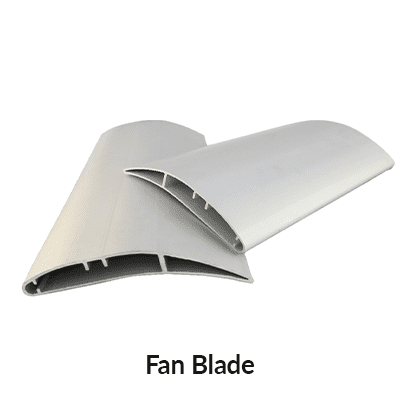

    • Blade: In accord with aerodynamic design, of high intensity and fatigue, 2mm thick aluminum-magnesium with 5 reinforcement ribs inside

Description

Always Leading the Technology Innovation of the HVLS Fan Industry

Brochures Download

Our approach is distinctly innovative. We constantly seek new ways to increase client

Download Brochure Here Request For A Quotation

Features/Models HVD-B7200 HVD-B6700 HVD-B6200 HVD-B5200 HVD-S4200 HVD-S3600 HVD-S3000 HVD-S2500
Diameter 7200mm (24ft) 6700mm (22ft) 6100mm (20ft) 5200mm (18ft) 4200mm (18ft) 3600mm (12ft) 3000mm (10ft) 2500mm (8ft)
Blades Qty 5 5 5 5 5 5 5 5
Weight 109kg 105kg 100kg 96kg 64kg 62kg 60kg 58kg
Power 0.88kw 0.88kw 0.88kw 0.66kw 0.66kw 0.66kw 0.66kw 0.66kw
Max Speed 50rpm 55rpm 60rpm 70rpm 80rpm 90rpm 100rpm 120rpm
Max Air Volume 14860m3/min 13700m3/min 122360m3/min 10830m3/min 7900m3/min 7300m3/min 5800m3/min 4900m3/min
Power Supply 220v/60hz single or three phase for option 220v/60hz single or three phase for option 220v/60hz single or three phase for option 220v/60hz single or three phase for option 220v/60hz single or three phase for option 220v/60hz single or three phase for option 220v/60hz single or three phase for option 220v/60hz single or three phase for option
Max Current 2.2A 2.2A 2.2A 2.2A 2.63A 2.63A 2.63A 2.63A
Noise Level <39db <39db <39db <39db <38db <38db <38db <38db
Area Covered Φ38-43m Φ35-40m Φ32-37m Φ25-30m Φ22-26m Φ20-24m Φ18-20m Φ15-18m
