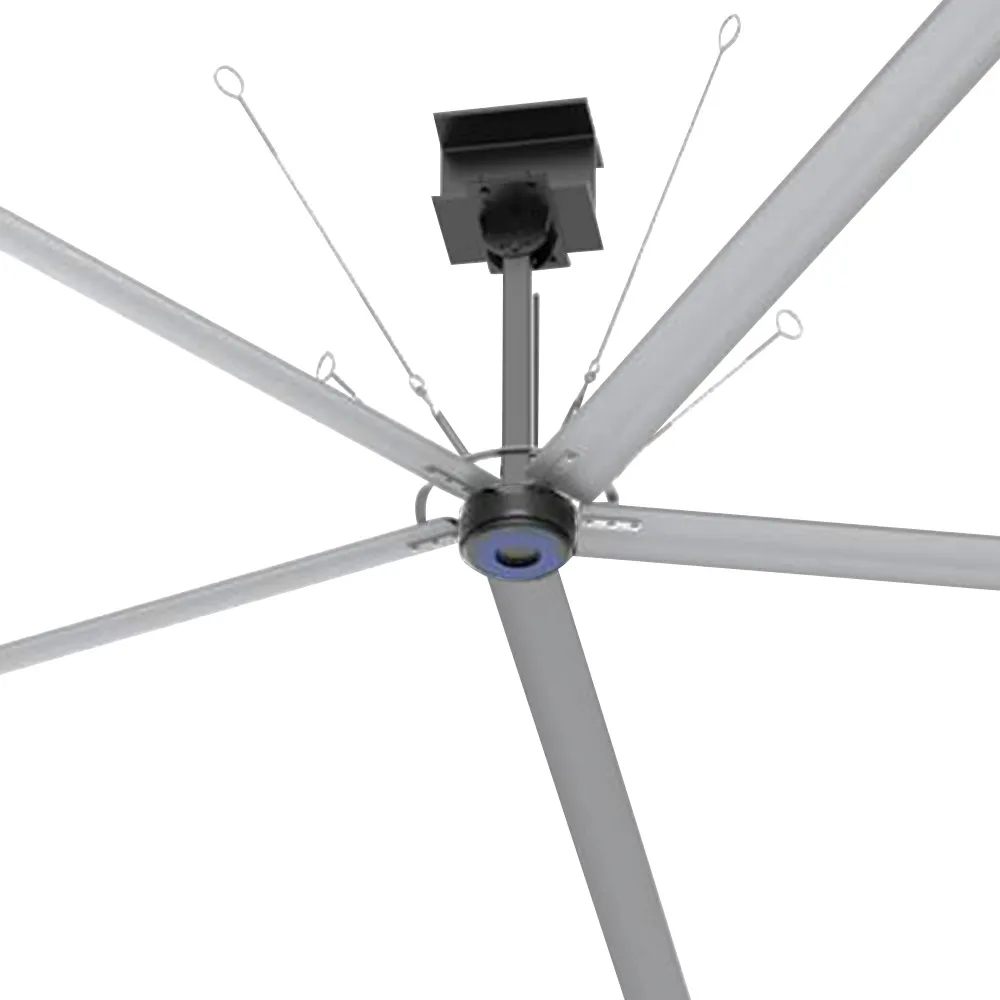

PM Brushless HVLS Fan

Airmatic PMSM direct-drive industrial HVLS fans is a new type of industrial fan with the technology of a permanent magnet synchronous direct-drive motor. It is a breakthrough in the industry and advanced in technology without the use of a reducer. The diameter Of the product is 6.1 meters and 5.0meters , and the full-load air volume reaches 14950 m3/min, which exceeds the air volume of conventional products by more than 30%, and the maximum coverage area can reach 1800 square meters. It is the first choice for cooling and ventilation in large spaces, improving environmental comfort, saving energy, and reducing consumption.

SMALL IN SIZE
The structure of the motor is simple, without a gearbox, which is 40% lower than the three-phase asynchronous motor of the same specification, which makes the installation space of the whole machine smaller and easier for installation.

ENERGY EFFICIENCY
The high working efficiency of the motor, the rated torque that can be output at a low frequency of 5 Hz, and the 20% power savings compared with the asynchronous motor of the same specification under the same air volume.

HIGH TORQUE
High-performance permanent magnet materials and a special built-in tangential rotor magnetic circuit structure result in a higher magnetic energy utilization rate, a stronger anti-demagnetization effect, and a 20% increase in motor torque.

TECHNICAL PARAMETERS

Diameter  – 6.1 & 5.0

Blades – 5

Weight –  100 kg

Voltage – 220v

Current – 2.6A

Input Power – 1.2kw

Speed Max – 10~55rpm

Category:

Description

The permanent magnet outer rotor industrial equipment and software. Our new permanent magnet synchronous motor (PMSM) platform is ensuring high energy efficiency, reliability, and cost-effectiveness. Compared with the inner rotor, the outer rotor arm has a longer arm and larger torque. The weight and thickness are further reduced, making the fan more slender and lighter.
